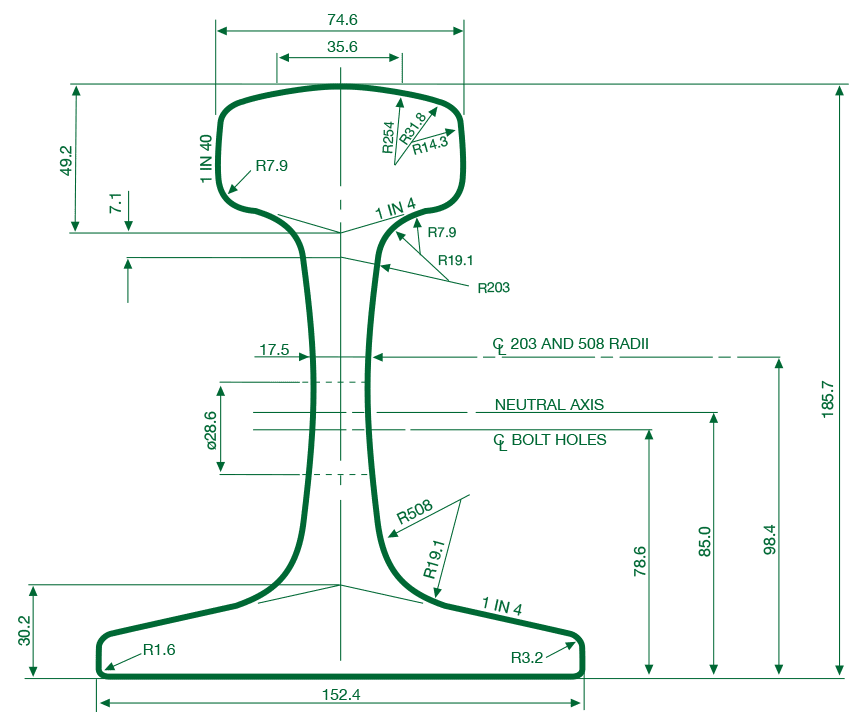

68kg Rail

68-kg-standard-rail
Overview

RT19 based upon the Australian Standard AS1085.1-2002

68kg rail from EMRAILS is a Plain Carbon rail suitable for most network and light freight and mining rail applications. Also suitable for crane rail, conveyor trippers, slipways, and workshop pads. Also suitable in the mining sector for stacker/reclaimers, crushers, bin-liners, and workshop pads.

Specifications
MECHANICAL PROPERTIES
STANDARD LENGTH: 12.5m
CALCULATED MASS: 67.5 kg/m
0.2% Proof Stress MPa: 420
Tensile Strength MPa: 880
% Elongation Gauge Length = 5.65 √So 8
Surface Hardness H.B: 260
