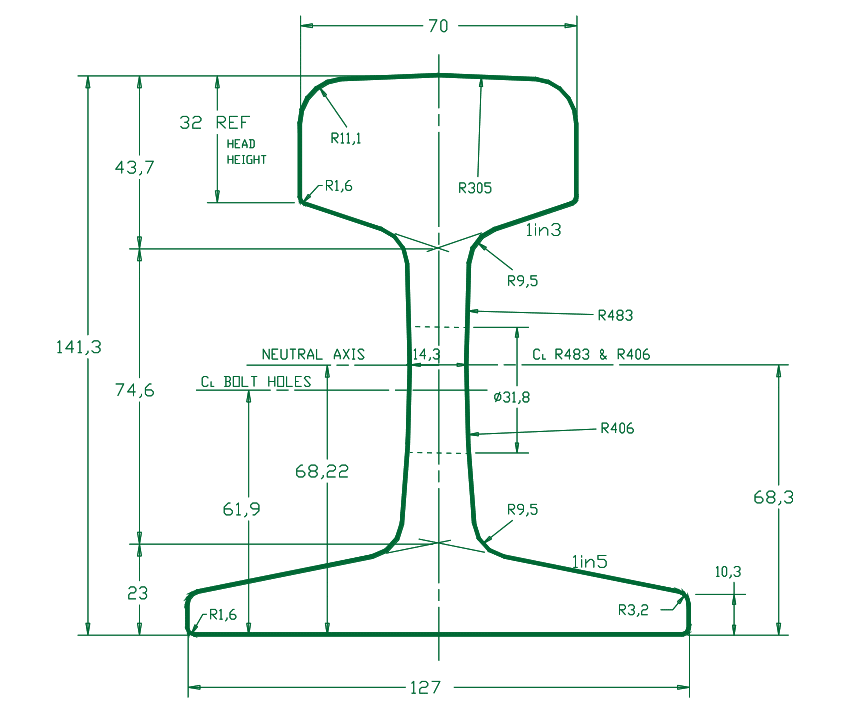

47kg Rail
Overview
RT27 based upon the Australian Standard AS1085.1-2002
47kg rail from EMRAILS is a Plain Carbon rail suitable for most network and light freight and mining rail applications. Also suitable for crane rail, conveyor trippers, slipways, and workshop concrete pads.
Specifications
| MECHANICAL PROPERTIES | |
| Tensile Strength N/mm2: | 700 |
| STANDARD LENGTH: | 12.00m |
| ELONGATION (%): | 8 min. |
| CALCULATED MASS: | 46.5 kg/m |
| AREA: | 191.4cm2 |
| SECTION MODULUS – FOOT: |
269.1 x 103 mm3 |
| SECTION MODULUS – HEAD: |
253.5 x 103 mm3 |
