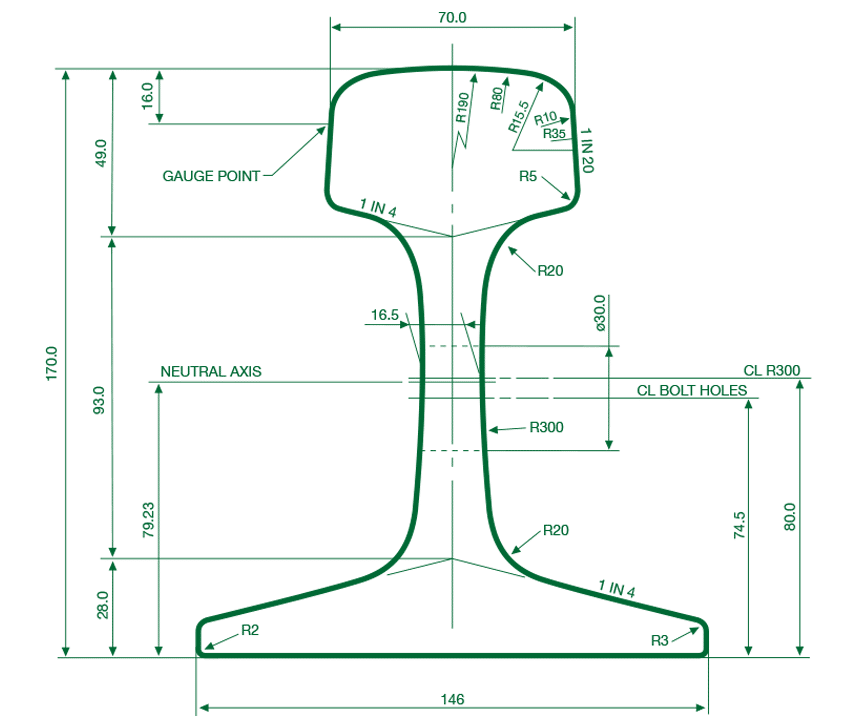

RT23 HH based upon the Australian Standard AS1085.1-2002
60kg HH rail from EMRAILS is a Head Hardened rail, this gives it better durability and suitability for heavy axle loads and tight radius curves and can contribute to the longevity of the rail network.
|STANDARD LENGTH:||12.19m & 13.72m|
|CALCULATED MASS:||60.6 kg/m|
|0.2% Proof Stress MPa:||780|
|Tensile Strength MPa:||1130|
|% Elongation Gauge Length = 5.65 √So||9|
