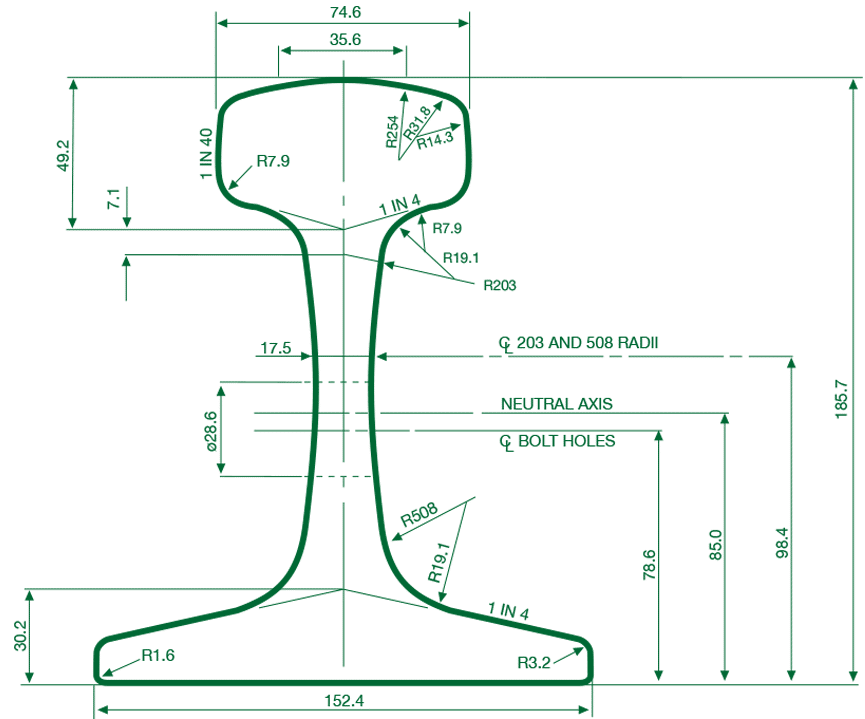

68kg Head Hardened Rail
Overview
RT19 HH based upon the Australian Standard AS1085.1-2002
68kg HH rail from EMRAILS is a Head Hardened rail, this gives it better durability and suitability for heavy axle loads and tight radius curves and can contribute to the longevity of the rail network. Also suitable for the mining sector for stacker/reclaimers, crushers, bin-liners, and workshop pads.
Specifications
| MECHANICAL PROPERTIES | |
| STANDARD LENGTH: | 12.5m |
| CALCULATED MASS: | 67.5 kg/m |
| 0.2% Proof Stress MPa: | 780 |
| Tensile Strength MPa: | 1130 |
| % Elongation Gauge Length = 5.65 √So | 9 |
