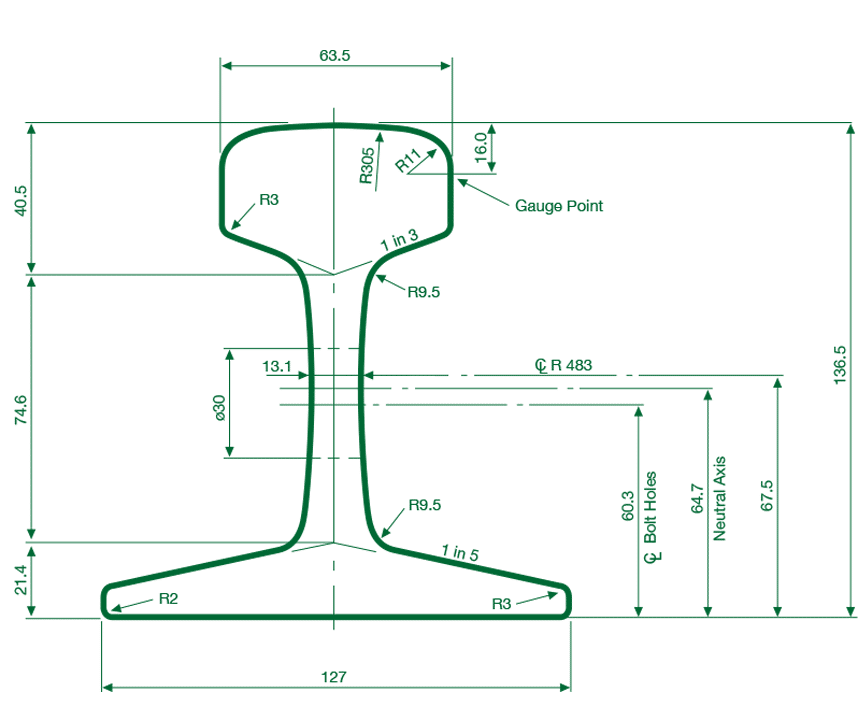

41 KG RAIL

RT 23

MECHANICAL PROPERTIES :

STANDARD LENGTH :
12.19 m & 13.72 m
CALCULATED MASS :
40.8 kg/m
Typical Mechanical Properties:
0.2% Proof Stress MPa :
400
Tensile Strength MPa :
700
% Elongation Gauge Length = 5.65 √So
8

CHEMICAL COMPOSITION (%) Ladle Analysis

CARBON :
0.53 - 0.69
SILICON :
0.15 - 0.58
MANGANESE :
0.60 - 0.95
PHOSPHOROUS :
0.025 min.
SULPHUR :
0.025 max.
